Subdivision Surfaces

Ian Rutherford

Overview

For my project I wrote a subdivision surface editor. My base project was to implement midpoint subdivision. For extras I implemented 4 other subdivision algorithms, as well as the ability to drag control points and triangulate a surface. Triangulation is done by taking all faces with n > 3 vertices and connecting each vertex to the centroid of the face, thus creating n new triangles.

Surfaces are loaded from and saved to S3D files. Additionally, Bezier patch files can be loaded as triangular meshes. Surfaces can be subdivided using any combination of the subdivision schemes. Surface points can be moved around in the current X-Y viewplane by holding control and mouse-dragging a point, and can be moved along the Z axis by holding control and middle-mouse-dragging.

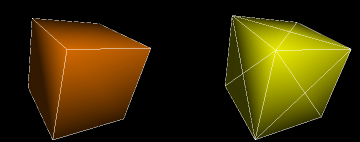

A simple cube illustrates the subdivision schemes nicely. This is the original cube model and its triangulation in yellow:


Here is the cube after 3 levels of each subdivision scheme:
Midpoint subdivision
Catmull-Clark subdivision
Doo-Sabin subdivision

The two triangular subdivision schemes use the triangulaged cube:
Loop subdivision
Root 3 subdivision


Subdivision Schemes

  • Midpoint subdivision
    • easiest to implement
    • fastest to compute
    • pdoruces the least new faces
    • produces the worst surfaces
  • Catmull-Clark subdivision
    • produces only quadrilaterals
    • produces smooth surfaces
    • slower to compute
  • Doo-Sabin subdivision
    • produces only degree 4 vertices
    • very similar to Catmull-Clark in quality and speed
  • Loop subdivision
    • needs a triangular mesh
    • produces the most faces during subdivision
    • produces the smoothest surfaces
    • fairly fast to compute
  • Root 3 subdivision
    • needs a triangular mesh
    • produces the least faces (except for midpoint)
    • not as smooth as loop
    • fast to compute

Examples

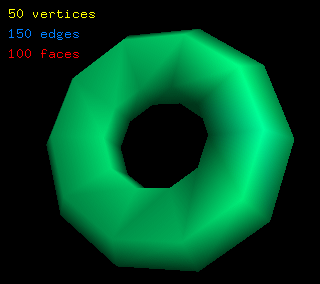

Looking at a triangular approximation to a torus, we can see that Loop subdivision produces the smoothest surfaces. Here is the original model and its complexity:


Here is the surface after 3 subdivisions of each scheme:
Midpoint subdivision

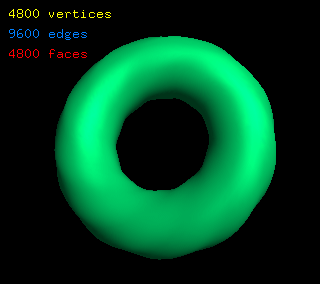

Catmull-Clark subdivision

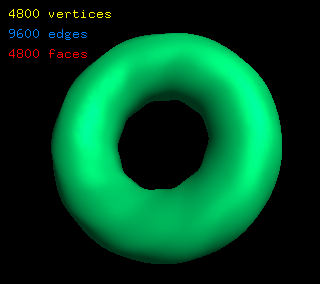

Doo-Sabin subdivision

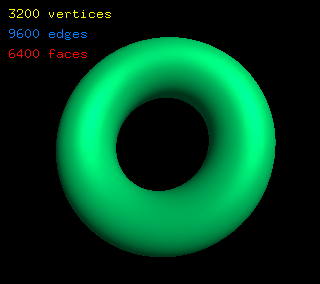

Loop subdivision
Root 3 subdivision


An interesting note on midpoint subdivision - subdividing a cube once with Doo-Sabin subdivision or twice with midpoint subdivision gives the same surface, which suggests that midpoint subdivision is much poorer:

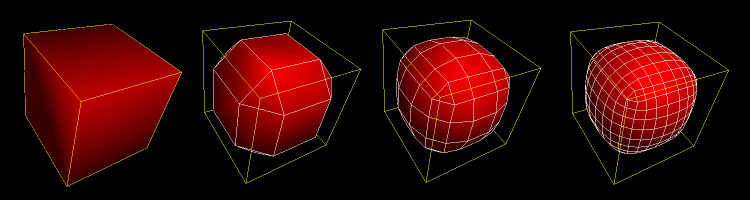

Midpoint subdivision: 2, 4, and 6 levels

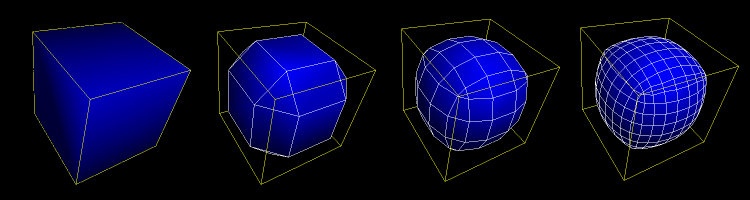

Doo-Sabin subdivision: 1, 2, and 3 levels

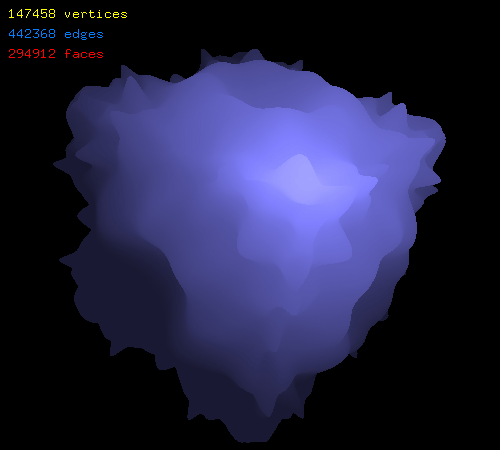

My program can also handle very complex surfaces:
